At 3:17 in the afternoon on a July Saturday, Elena's patio looked perfect except for one problem: the sun had shifted, her table was half in glare, and the fixed roof she almost bought would have blocked her evening sky too.
That tradeoff is exactly why a DIY retractable pergola canopy appeals to so many backyard owners. You get shade when the heat is brutal and open air when you want light, breeze, or a clear view upward.
This guide walks through the slide-on-wire version of that system in plain terms. You will learn how the canopy works, what hardware matters, how to measure the opening, and how to avoid the three failures that ruin most first attempts: sagging, wind flap, and water pooling. You will also see when a retractable build is worth the work and when a fixed shade sail is the smarter move.
If you already know your pergola needs shade but you are still comparing fabric types, start with KGORGE's compare fabric collections. That one decision affects drainage, airflow, maintenance, and how forgiving the whole project will be.

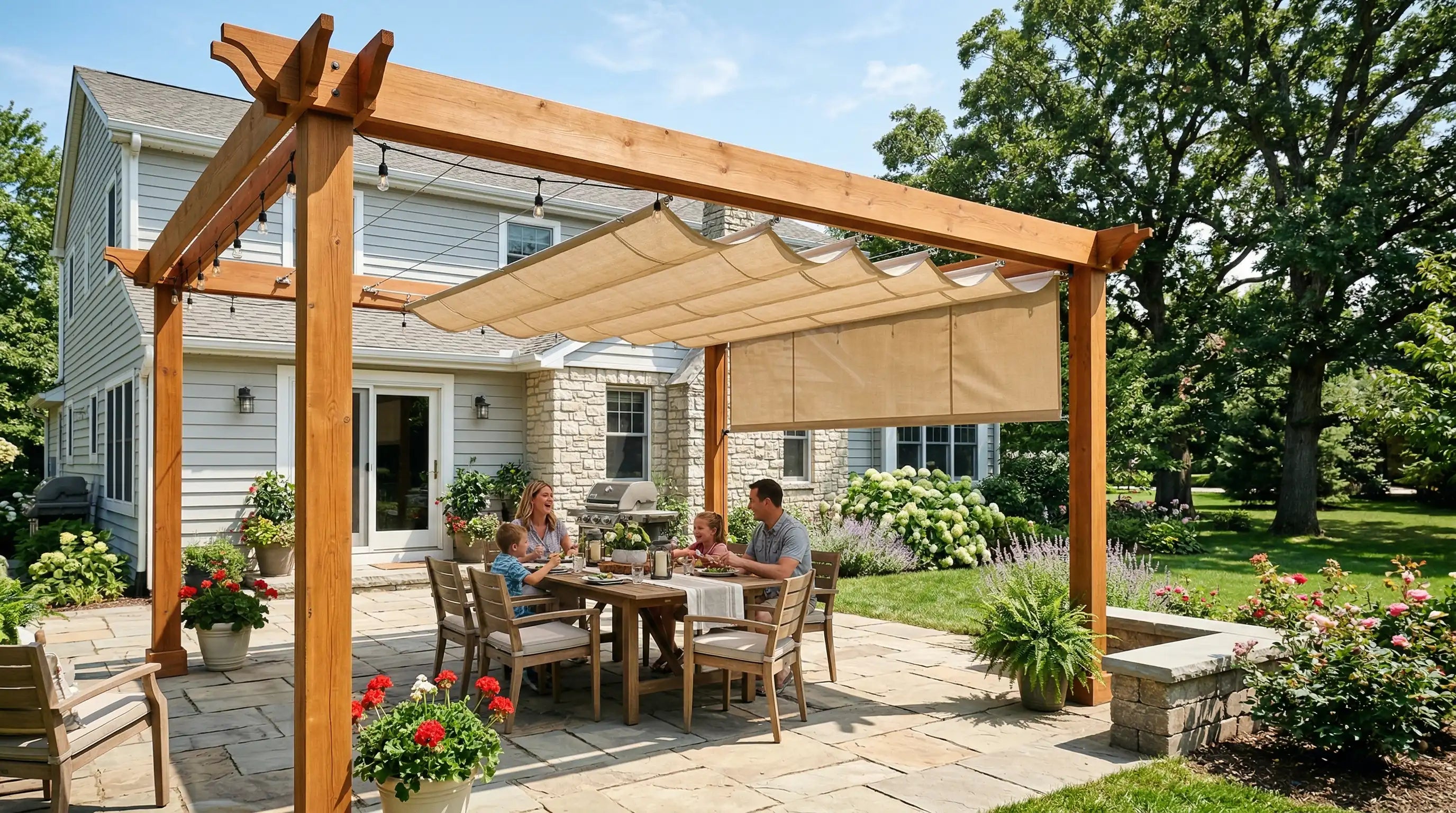

What Is a Slide-on-Wire Retractable Sun Shade System?
A slide-on-wire canopy is a fabric cover that moves back and forth on parallel support lines. Instead of stretching one fixed panel over the whole frame, you run several wires or cables across the pergola and suspend fabric panels with sleeves, rods, clips, or rings. Pull the panels closed for shade. Slide them back for open sky.
That makes it different from a fixed shade sail. A fixed sail stays under constant tension and depends on anchor geometry to hold shape. A wire-hung canopy trades some tension for movement, which makes the structure easier to open and close but also more sensitive to sagging if your spacing, hardware, or fabric choice is wrong.
You will usually see two versions of this idea:
- Wire-hung canopy: Fabric rides on stainless cable or wire with rods and sleeves.
- Track-based canopy: Fabric moves inside a manufactured track system with dedicated rollers or glides.
For most homeowners, the wire-hung approach is the simpler entry point. It uses common hardware, works on many existing pergolas, and lets you repair one part at a time. The tradeoff is that your measurements, slope, and wire tension have to be more disciplined.
There is also a practical reason to build shade in the first place. The EPA says the sun's UV rays are strongest between 10 AM and 4 PM, and UV Index levels from 3 to 7 already call for protection while 8 and above call for extra protection. A retractable canopy does not replace sunscreen or other protection, but it can make a patio, deck, or pergola much more usable during the hours people actually avoid being outside.
Is a DIY Retractable Pergola Canopy the Right Project for Your Space?
Not every pergola should carry a retractable system. Before you buy fabric or cable, look at the frame you already have and ask a harder question: can this structure handle movement, tension, and occasional weather exposure without twisting or loosening over time?
Start with the support frame. You need straight, solid members where eye bolts, pad eyes, or anchors can mount without splitting the wood or flexing the metal. A decorative pergola that only looks substantial in photos is not enough. You want a structure that still feels rigid when you push on it by hand.
Next, think about weather. A retractable canopy is not a storm-proof roof. Wind introduces lifting force, side load, and hardware fatigue. Rain introduces weight fast, especially with waterproof fabric and flat spans.
Marcus learned that lesson on August 9, 2025, after he installed a flat waterproof panel over a small pergola in Tucson. The build looked clean on day one.
Then monsoon rain hit overnight, water pooled in the middle, one anchor started to twist, and the fabric stretched enough that the canopy never glided the same way again. His expensive mistake was not weak fabric. It was ignoring slope and drainage. That's the kind of failure you can prevent on paper before you ever drill the first hole.
Use this quick yes-or-no check before you commit:
| Question | If yes | If no |
|---|---|---|
| Do you have strong beams or posts for anchors? | Keep planning | Reinforce or stop |
| Can the canopy slope or drain properly? | Safer for DIY | Pooling risk rises fast |
| Will you retract it in storms and high wind? | More realistic DIY use | Consider fixed alternatives |
| Can you sew sleeves or order fabric finished correctly? | DIY stays manageable | Budget for fabrication help |
| Are you comfortable tensioning cable hardware? | Proceed carefully | Buy a kit or hire help |
If two or more of those answers are no, step back. A fixed pergola sail or a simpler sun shade sail may serve the space better with less risk and less maintenance.
Materials and Tools for a Slide-on-Wire Canopy
The best builds stay simple. They do not use mystery hardware from five different aisles and hope it works together. They use corrosion-resistant components, sensible fabric, and enough adjustment points to tune the system after installation.
Fabric choice: breathable first, waterproof only with a plan
For most first-time builders, breathable fabric is the safer choice. It allows airflow, reduces trapped heat, and makes drainage easier because water can pass through or at least not collect as aggressively. Waterproof fabric can work, but only when you build in slope, runoff direction, and enough tension to keep the fabric from forming pockets.
That is why the fabric decision should happen before the hardware order, not after. The Skin Cancer Foundation notes that UPF 50 fabric blocks 98% of UV rays, which is useful context when you are deciding between comfort and protection goals. If your main goal is cooler daytime use with easier maintenance, a breathable shade option is usually the better fit. If your main goal is rain blocking, the structure and drainage details become far less forgiving.
Useful material categories for this project include:
- breathable shade fabric for airflow and easier DIY drainage
- waterproof fabric only where runoff is controlled
- stainless steel cable or wire rope
- turnbuckles for adjustment
- eye bolts, pad eyes, or lag eyes
- ferrules, thimbles, and cable clamps if you are making cable runs
- rods or battens for the sleeve pockets
- pulley rope, cleat, or pull strap for easier operation
If you want to compare shade materials before you build, review KGORGE's fabric comparison page and browse pergola shade sails. It is a faster way to decide whether you should sew custom panels, adapt existing fabric, or skip the retractable route and order a fixed solution.
Tools you will likely need
Most homeowners use a basic setup:
- tape measure
- pencil or chalk line
- drill and bits rated for your frame material
- wrench set
- cable cutter or swaging tools if building custom cable runs
- sewing machine suitable for heavy fabric, or a local canvas shop
- ladder
- safety glasses and gloves
If you do not already own heavy-duty fabric tools, include that in the real project cost. Sailrite's slide-on-wire tutorial is useful here because it shows the fabric finishing side clearly. That alone should help you decide whether the build is inside your comfort zone.
How to Measure a DIY Retractable Pergola Canopy
Measurement is where a DIY retractable pergola canopy either becomes smooth and usable or annoying every single day. The goal is not just to cover the opening. The goal is to create fabric panels that move easily, close neatly, and clear the frame without dragging.
Start with three numbers:
- Overall width across the pergola where the cables will run.
- Projection from the front to the back of the opening.
- Clear mounting distance between anchor points on each cable line.
Then make four planning decisions:
- How many cable runs will carry the fabric?
- How much space should sit between cable runs?
- How many fabric panels will you use?
- Where will the stacked fabric sit when the canopy is open?
For a medium backyard pergola, many DIY builders use cable spacing close to 12 to 18 inches on center. Wider spacing can create deeper fabric sag between runs. Very tight spacing uses more hardware and more labor but often glides better.
The fabric panel should also be slightly smaller than the full opening. You need side clearance so the canopy can move. You need front and rear clearance so rods, hems, and hardware do not bind. You also need to account for the finished dimension after hems and sleeves are sewn.
Here is a simple planning worksheet:
| Measurement item | What to record | Why it matters |
|---|---|---|
| Opening width | Beam-to-beam clear span | Sets cable length and panel width |
| Opening projection | Front-to-back depth | Sets panel travel and stack size |
| Anchor setback | Distance from edge to hardware | Prevents rubbing on frame |
| Cable count | Number of parallel runs | Controls sag and support |
| Stack allowance | Space for gathered fabric | Keeps open position tidy |
If you need help checking shade dimensions before you cut fabric, use KGORGE's shade sail measuring guide. It is written for shade products in general, but the measurement discipline transfers directly to a retractable canopy.
How to Build a DIY Retractable Pergola Canopy Step by Step
This is the simplest build sequence for a wire-hung canopy. Exact hardware can vary, but the order should stay close to this. Build the support system first, confirm movement second, and finish fabric details last.
Step 1: Mark anchor points and verify alignment
Mark every cable run before you drill a single hole. The left and right anchor points need to line up so the rods travel straight. Even a small alignment error can make the canopy bunch, twist, or drag.
Use a chalk line or straightedge and measure from the same reference edge each time. If the pergola is already slightly out of square, split the error where you can instead of letting one run absorb the full misalignment.
Step 2: Install eye bolts, pad eyes, or mounting hardware
Choose hardware that matches both the frame material and the expected load. Stainless hardware is the safer choice outdoors because it stands up better to moisture and long-term exposure.
Mount anchors into structural members, not trim. If you are working with wood, pre-drill clean holes and avoid placing hardware too close to the edge of the beam. If you are working with metal, use hardware rated for that material and avoid improvising with parts that were not made for tensioned outdoor use.
Step 3: Run the cables and add adjustment
Attach one end of each cable, then install the turnbuckle or other adjustment point on the opposite end. Bring each line into tension gradually. Do not fully tighten one cable while the others are still loose.
You are aiming for consistency, not heroic force. A cable that is excessively tight can stress anchors and still fail to solve sag if the spacing or fabric choice is wrong. If you need help understanding healthy tension in outdoor shade projects, see KGORGE's article on how tight a shade sail should be. The hardware principles overlap even though the product type is different.
Step 4: Cut, hem, and sleeve the fabric panels
Now cut the panels to their finished plan. Each panel usually needs:
- finished side hems
- front and rear hems
- sleeve pockets for rods or battens
- reinforcement at stress points
If your chosen fabric is waterproof, this is also the stage where you decide whether drainage grommets are needed. Breathable fabric often lets a beginner skip that complexity. Waterproof fabric usually does not.
Step 5: Insert rods and attach the panels
Slide the rods or battens through the sewn sleeves. Then connect each rod to the cable runs with rings, clips, or glides depending on your system design.
This is the moment where bad planning shows up. If the rod ends rub the frame, if the clips are not even, or if one cable run sits lower than the others, the canopy will not stack neatly. Fix those issues now while the system is still easy to reach.
Step 6: Test glide movement before adding controls
Open and close the canopy by hand several times. Watch how the fabric folds. Watch where the first drag point appears. Check whether one panel reaches the stack earlier than the others.
On May 18, 2026, Nina tested a small pergola canopy in two phases instead of trying to finish everything in one push. She hand-slid the panels ten times before adding the rope pull. That extra half hour showed her one anchor sat 3/8 inch too low. She corrected it early and saved herself from rebuilding the entire pull system later.
Step 7: Add a pulley, rope, or pull strap
Once the canopy glides smoothly by hand, add the control method you actually want to use. A simple pull strap can work on small spans. A rope-and-pulley setup is more comfortable on longer pergolas.
Keep the mechanism simple. Every extra crossover, pulley, or special bracket is another point that can bind or wear out. If the system needs three hands to close, it is not finished.
[Visual: exploded diagram showing cable runs, rod pockets, panel stack, and pull direction.]
How to Prevent Sagging, Wind Flap, and Water Pooling
Most ugly retractable canopies fail for predictable reasons. The good news is that each one can be reduced by planning ahead.
Sagging
Sagging usually comes from one of four causes:
- cable spacing is too wide
- fabric is too stretchy for the span
- cable tension is too loose
- the panel is oversized for the opening
If the panel droops between support lines, add more support or reduce span. Do not assume cranking the turnbuckle harder will solve everything. It often will not.
Wind flap
Wind damage is less about drama and more about repetition. Small cycles of movement loosen hardware and wear fabric over time. If your yard gets regular gusts, plan to retract the canopy when it is not in use.
This is also where a fixed sail can be better than a retractable setup. A properly tensioned sail has fewer moving parts and less fabric bunching. If your pergola sits in an exposed area, a retractable canopy may be the less durable choice even if it looks more flexible on paper.
Water pooling
Water pooling is the fastest route to stretching, staining, and anchor stress. The fix is not just "pull it tighter." The real fix is using the right fabric and building in drainage from the start.
For waterproof builds, that means:
- visible slope
- runoff direction away from seating areas
- no low pockets between supports
- enough tension to avoid belly formation
- drainage details where needed
If you want a deeper breakdown of runoff problems, read KGORGE's guide on how to stop water pooling on a shade sail. The examples are about fixed sails, but the drainage logic matters even more for retractable fabric systems.
Ready to simplify the build? If your main goal is reliable summer shade, not mechanical movement, compare your retractable plan with KGORGE's pergola shade sails. Many homeowners end up choosing a simpler, stronger layout after they see the maintenance difference.
DIY Retractable Pergola Canopy vs. Fixed Shade Sail vs. Kit
The smartest project is not always the most advanced one. Sometimes the right answer is the one you will still like after one full season outside.
| Option | Best for | Main upside | Main tradeoff |
|---|---|---|---|
| DIY slide-on-wire canopy | Homeowners who want adjustable shade and enjoy building | Flexible, customizable, satisfying DIY project | More setup complexity and more moving parts |
| Fixed shade sail | Homeowners who want simpler coverage and stronger tension | Easier to install, often lower maintenance | No retractable function |
| Commercial retractable kit | Buyers who want cleaner operation and engineered parts | Smooth movement, polished finish | Higher upfront cost |
Choose the slide-on-wire path if:
- your pergola is strong and square
- you want open-sky evenings
- you can handle measurement and fabric finishing
- you will retract the canopy in bad weather
Choose a fixed sail if:
- you want the easiest route to dependable shade
- your site gets regular wind
- you do not want to sew or tune a moving system
- you prefer fewer maintenance tasks
Choose a manufactured retractable kit if:
- appearance matters as much as function
- you want track-based glide performance
- you are covering a larger or more visible entertaining space
- you can justify the cost
This is also where budget honesty matters. The Department of Energy notes that awnings can reduce solar heat gain significantly, up to 65% on south-facing windows and 77% on west-facing windows. Shade has real performance value. But the cheapest path to useful shade is still the one that matches your site, your weather, and your willingness to maintain it.
Best KGORGE Resources for This Project
KGORGE is a better fit for the fabric, shade, and planning side of this project than for pretending a retractable canopy is one universal product. Use the site where it adds real value:
- shop sun shade sails if you want a simpler fixed solution
- review pergola shade sails if the opening is already built and you want coverage designed for that use case
- browse shade sail accessories for compatible outdoor hardware categories
- use the shade sail measuring guide before you finalize dimensions
- read how to install a shade sail without posts if your challenge is attachment points, not fabric movement
If you are stuck between building a retractable canopy and buying a fixed shade solution, that is the right time to compare products instead of forcing a DIY plan. The project usually gets cheaper and better when you make that call early.
FAQ: DIY Slide-on-Wire Canopy Questions
How far apart should the wires be on a slide-on-wire canopy?
Many homeowners start in the 12 to 18 inch range on center, but the final spacing depends on fabric stiffness, span length, and how much sag you can tolerate. Longer spans and softer fabric usually need closer support.
Is breathable fabric better than waterproof fabric for a retractable canopy?
For most DIY builds, yes. Breathable fabric is usually easier to live with because it reduces trapped heat and creates fewer pooling problems. Waterproof fabric demands better slope, better drainage planning, and more discipline about tension.
Can a retractable canopy stay out in heavy wind?
It should not be treated as a leave-it-out-in-anything system unless the product was engineered for that use and the structure was built for it. Most DIY builds last longer when they are opened only in fair weather and retracted in stronger wind.
Can I mount a slide-on-wire canopy without pergola posts?
Sometimes, yes, if you already have strong attachment points on walls or another structure. If you are trying to build shade without dedicated posts, read KGORGE's article on installing a shade sail without posts because the anchor planning issues overlap.
Is a retractable canopy cheaper than a fixed shade sail?
Not always. A retractable canopy can cost more once you add cables, rod pockets, control hardware, and sewing time. A fixed shade sail often wins on simplicity and value.
The Bottom Line
A retractable wire-hung canopy can be a smart backyard upgrade, but only when the structure is solid, the measurements are disciplined, and the fabric choice matches the weather you actually get. Build it because you want adjustable shade and you are willing to maintain a moving system. Don't build it just because the idea sounds cooler than a fixed sail.
If you remember three things, make them these: breathable fabric is usually the friendliest starting point, slope matters more than most first-time builders expect, and simple hardware layouts age better than complicated ones. That is why some homeowners finish their planning and still choose a fixed shade solution.
One last example makes the point. On June 2, 2026, Jordan measured his pergola twice, priced the cable hardware, and realized a retractable setup would solve a problem he barely had. What he actually needed was dependable afternoon shade and low maintenance. He ordered a fixed pergola sail instead and spent the saved time outside instead of tuning pulleys.
