How to Stop Water Pooling on Shade Sail

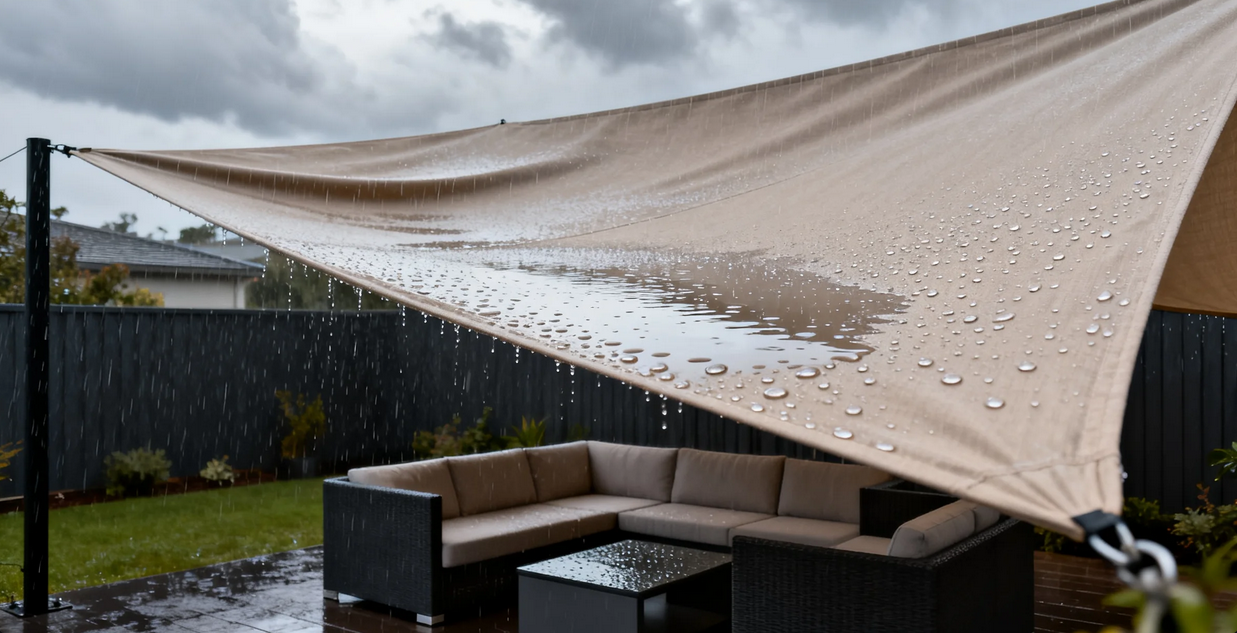

There is nothing worse than watching your beautiful new shade sail turn into a heavy, sagging bag of water during a rainstorm. Not only is it an eyesore, but the weight of pooled water (which can weigh 8 pounds per gallon) destroys fabric fibers, bends hardware, and can even pull down your mounting posts.

If you are wondering why this is happening and how to stop it, you are in the right place. This guide covers the physics of pooling, professional installation tricks, and the specific hardware you need to fix it for good.

Key Takeaways

• Tension is Key: A loose sail acts like a bucket. A tight sail acts like a drum.
• The 1:5 Slope Rule: You must install waterproof sails with a steep angle (minimum 20% slope) to allow runoff.
• Material Matters: Waterproof fabrics require more precise installation than breathable mesh (HDPE) fabrics.
• Hardware Maintenance: Turnbuckles loosen over time; retensioning is a necessary part of ownership.

Why Is My Shade Sail Sagging?

Sagging is almost always caused by two factors: insufficient tension or improper installation angles. Once the fabric relaxes, water collects in the center. As water accumulates, the fabric stretches further, creating a permanent "belly" in the sail.

Common causes include:

• Posts are too level: Installing all corners at the same height prevents water runoff.
• Wrong Hardware: Using rope or bungee cords instead of stainless steel turnbuckles makes it impossible to achieve high tension.
• Fabric Stretch: New sails naturally relax and stretch slightly within the first few weeks (mechanical creep).
• Lack of "Catenary Curve": Good sails are designed with curved edges to pull the center tight. Poorly made "flat" sails will always sag in the middle.

Pro Tip: High-quality sails like those from KGORGE are engineered with reinforced webbing to hold tension longer, but they still require correct installation.

How to Stop Water Pooling (The Fix)

The golden rule for preventing pooling is the Slope. Gravity needs help moving the water off the fabric.

1. The 20% Slope Rule

For waterproof sails, we recommend a slope of roughly 20% (or a 1:5 ratio). This means for every 5 feet of sail length, one corner should be 1 foot lower than the other.

Example: If your sail is 15 feet wide, the lower corner should be at least 3 feet lower than the high corner.

2. The "Hypar" Twist

For square or rectangular sails, don't just slope it like a roof. Create a "Hypar" (Hyperbolic Parabola) twist. Attach two diagonal corners high, and the other two diagonal corners low. This twist creates a 3D shape that pulls the fabric tight and prevents water from sitting in the middle.

3. Quick Fixes for Existing Sails

1. Retension immediately: Use your turnbuckles to tighten each corner. The sail should sound like a drum when tapped.
2. Lower a mounting point: If your posts are already set, use a longer chain or cable on two corners to artificially lower the angle.
3. Check your hardware: Replace rusted hooks or stretched ropes with heavy-duty stainless steel turnbuckles.

Do Waterproof Shade Sails Work?

Yes, but they function differently than standard mesh sails.

Standard HDPE (Mesh) Sails: These are breathable. They block UV rays but allow hot air to rise out and rain to filter through. They are less likely to pool water.

Waterproof (Polyester/PVC) Sails: These are coated to block water entirely. They act like a solid roof. Because the water cannot pass through, installation angle is critical. If installed flat, they will pool water immediately.

Recommendation: If you live in an area with heavy storms and cannot achieve a steep slope, stick to breathable HDPE mesh.

How to Properly Tension a Shade Sail

Tension is what keeps the sail aerodynamic and stable. Here is the professional method:

• Angle your posts: Posts should lean slightly away from the sail (about 10°) to counteract the pulling force.
• Maximize Turnbuckles: Ensure your turnbuckles are fully extended (open) when you install them, giving you maximum room to tighten them later.
• Tighten in Order: Work diagonally. Tighten corner A, then the opposite corner C, then B, then D.
• Retension Early: New fabric will stretch. Retighten your turnbuckles after the first week, and again after the first heavy rain.

Shade Sail Lifespan & Maintenance

How long your sail lasts depends on the material quality and UV exposure.

Design Ideas: Beyond the Patio

Don't limit yourself to a basic square patio cover. Modern US homes are using shade sails for:

• Carport Protection: Protect vehicle paint from UV damage and hail.
• Pool Privacy: Angled vertical sails can block neighbors' views.
• Driveway Extensions: overlapping multiple triangular sails for an architectural look.

Conclusion

Preventing water pooling isn't about luck; it's about physics. By ensuring you have the right slope (20%), high-quality tension hardware, and the correct fabric type for your climate, your shade sail can last for a decade. Whether you choose a breathable KGORGE mesh for airflow or a waterproof canopy for rain protection, keep it tight and keep it angled.

Frequently Asked Questions

Q1: How much slope do I really need?
For waterproof sails, aim for a 20% drop (1:5 ratio). For breathable mesh sails, a 15% drop is usually sufficient as some water passes through.

Q2: Can I tighten a sail that has already stretched out?
Yes. If your turnbuckles are maxed out and the sail is still loose, you may need to replace the turnbuckle with a "chain link" or "D-shackle" extension to grab the corner further back, or move the mounting point.

Q3: How often should I check the tension?
Check it every spring when you reinstall the sail, and tighten it midway through the summer. Always inspect it after a major storm.

Q4: Why is my waterproof sail leaking mist?
In extremely heavy downpours, even waterproof woven fabrics can experience "misting" if the water pools and is forced through the coating. Proper slope prevents this.
