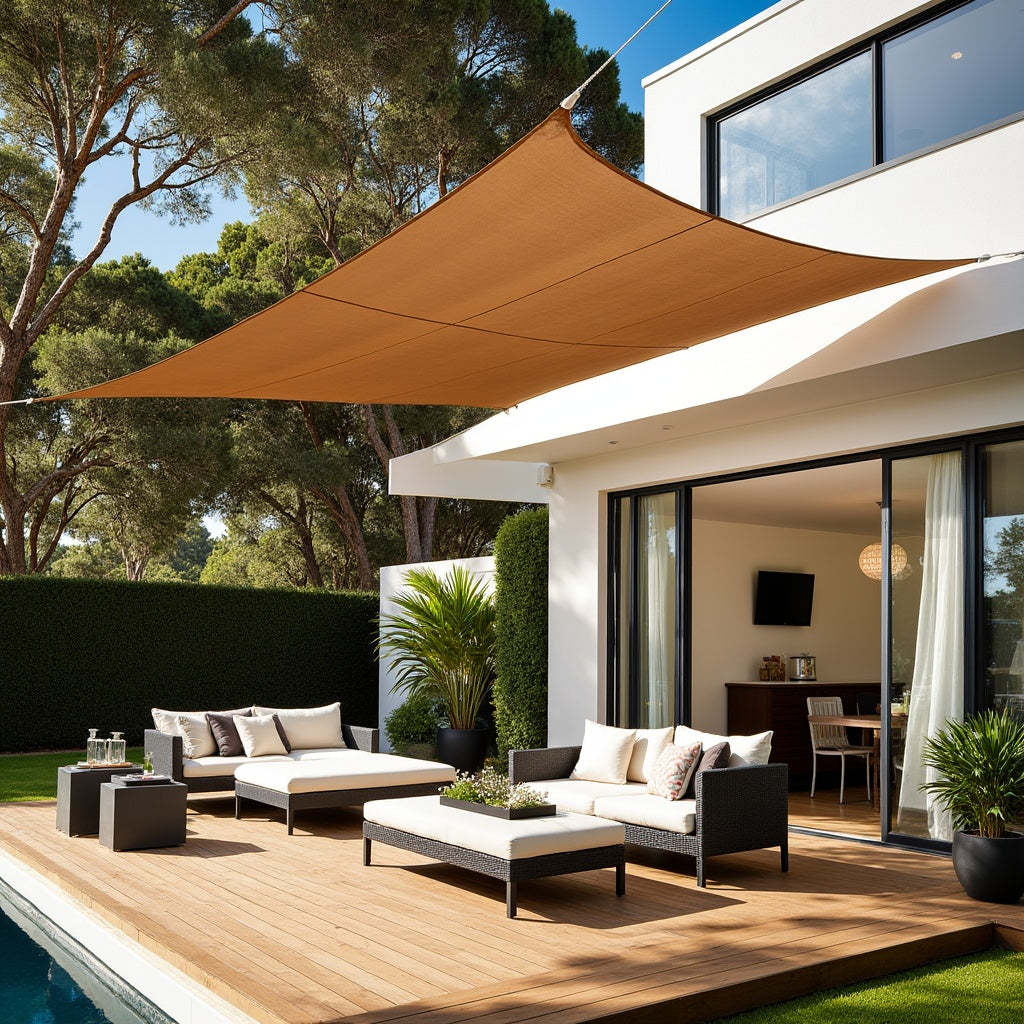

Installing a shade sail without posts—anchoring directly to your home, garage, or existing trees—is the smartest way to achieve a sleek, modern look while maximizing your usable square footage. However, because you are eliminating posts, the structural integrity of your mounting points becomes the single most critical factor.
This guide cuts through the noise and gives you the specific engineering and installation steps needed to install a wall-mounted shade sail safely and securely.
Key Takeaways:
1. The "Post-Free" Advantage
Eliminating posts reduces material costs and keeps your patio floorplan open. By utilizing existing structures (your house, a sturdy tree, or a garage wall), you create a "floating" aesthetic. However, this method transfers the wind load directly to your building. If done correctly, it is seamless; if done poorly, it can damage your home's siding or fascia.
2. Critical Pre-Check: Assessing Structural Integrity
Before you buy a sail, you must verify your mounting points. A shade sail under wind load can exert hundreds of pounds of pull force.
- Wall Mounting (Wood/Siding): You cannot attach a shade sail to vinyl, aluminum, or fiber cement siding alone. You must locate the wall stud, header, or top plate behind the siding.
- Fascia/Eaves: If attaching to the roofline, ensure the fascia board is reinforced by a rafter tail behind it. Never attach to hollow fascia.
- Masonry/Brick: Use heavy-duty masonry sleeve anchors. Avoid attaching to old, crumbling mortar joints.
- Trees: Only use mature, healthy trees with a trunk diameter of at least 10 inches.
3. The Golden Rule of Measuring
Most beginners make this fatal mistake: Buying a sail that fits the exact dimensions of the space.
The Correct Formula: Mounting Point Distance minus Hardware Allowance = Sail Size.
You must leave a gap between the corner of the sail and the wall anchor to fit your turnbuckles. We recommend leaving 10 to 12 inches at each corner. This space is essential for tensioning. If the sail is too big, you will never be able to pull it tight, and it will sag and collect rain.
4. Required Hardware & Tools
Do not use rope for permanent installations; it stretches and rots. Use stainless steel (Marine Grade 316) hardware.
The Hardware Kit:
- Pad Eyes (Diamond/Square): The anchor plate that screws into the wall.
- Turnbuckles: The tensioning device. You need at least 2 per sail to tighten it properly.
- D-Shackles or Snap Hooks: To connect the corners that don't need tensioning.
The Tool Kit:
- Drill with appropriate bits (wood or masonry)
- Stud finder
- Socket wrench set
- Waterproof Silicone Sealant: Essential for sealing holes in your siding to prevent water damage.
5. Step-by-Step Installation Guide
Step 1: Mark Your Studs
Use your stud finder to locate the center of the studs or headers at your desired height. Mark the drill holes using the pad eye as a template.
Step 2: Drill and Seal
Drill pilot holes into the stud. Before inserting the screws, inject a small amount of silicone sealant into the hole and on the back of the pad eye. This creates a watertight seal that protects your home from rot.
Step 3: Install Brackets
Drive your lag screws (or masonry bolts) through the pad eye and into the structure. Ensure they are flush and tight.
Step 4: Connect the Sail
Attach the shade sail to your anchors. Use D-shackles for the corners closest to the wall, and prepare your turnbuckles for the remaining corners. **Tip:** Fully extend (open) the turnbuckles before attaching them to give yourself maximum tightening range.
6. Tensioning: The Secret to Professional Results
A loose sail looks amateur and catches wind like a parachute. To get that professional "drum-tight" look:
- Attach all corners loosely.
- Begin tightening the turnbuckles. Rotate them to pull the threaded ends inward.
- Tighten until the center of the sail lifts and the fabric is taut with no wrinkles.
- A properly tensioned sail creates a "hypar" (hyperbolic parabola) shape, which helps deflect wind and shed rain efficiently.
7. Maintenance & Safety Tips
- Re-Tensioning: New fabric stretches slightly after the first few weeks. Check your turnbuckles after 14 days and tighten them if necessary.
- The "Take-Down" Rule: While high-quality sails are durable, they are not invincible. If a storm, hurricane, or heavy snow is forecast, take the sail down. It takes 5 minutes and saves your house from damage.
- Cleaning: Clean annually with a mild detergent and a garden hose. Do not use bleach or a high-pressure power washer, as this can damage the UV coating.
8. Why Choose Kgorge?
Since wall-mounted installs rely on fixed points (your house), you rarely have the luxury of moving the anchors to fit a standard-sized sail. You usually need a sail that fits your specific studs.
The Kgorge Advantage:
- Precision Customization: We customize sails up to 385 inches. You give us the anchor point measurements; we calculate the necessary tension gap for you.
- Fast Turnaround: Custom production takes just 1-2 days.
- Commercial Grade: We use high-GSM fabric designed to handle the tension required for post-free spans.
Conclusion
Installing a shade sail without posts is the most elegant way to shade a patio, but it requires respect for your home's structure. By finding the studs, calculating the correct size (Space minus Hardware), and using proper tensioning tools, you can add a permanent architectural feature to your home in a single afternoon.
FAQ
1. Can I attach a shade sail to vinyl siding?
You can, but not directly to the vinyl. You must drill through the vinyl and into the solid wood stud or header beneath it. If you attach only to the vinyl, it will rip off.
2. How much space should I leave for hardware?
We recommend deducting roughly 10% of the span length, or a minimum of 10-12 inches per corner. This ensures you have enough room to tighten the turnbuckles fully.
3. Can I use rope instead of metal hardware?
For a temporary picnic? Yes. For a permanent home installation? No. Rope degrades in UV light and stretches when wet, causing the sail to sag. Always use stainless steel turnbuckles for a home install.
