Sun shade sails are more than just fabric overhead; they are architectural elements that can define a space. However, the difference between a sleek, professional-looking installation and a sagging, water-pooling mess lies entirely in the planning. Whether you are covering a complex geometric patio or a sprawling commercial yard, the physics of tension and drainage remain the same.
Below is your advanced guide to mastering irregular layouts, preventing water damage, and nailing the installation angle.
1. Strategy for Irregular or Extra-Large Areas
One giant sail is rarely the answer for a large space. It becomes a heavy "wind sail" that puts massive stress on your posts. The professional approach is segmentation.
The Layered Approach (Multi-Sail Layouts)
Don't just place sails side-by-side; layer them. This creates visual depth and ensures better coverage as the sun moves.
- The "Gap" Problem (Side-by-Side): Installing sails on the same plane often results in gaps where the sun sneaks through. It also requires perfectly aligned mounting points, which are hard to achieve in DIY settings.
-

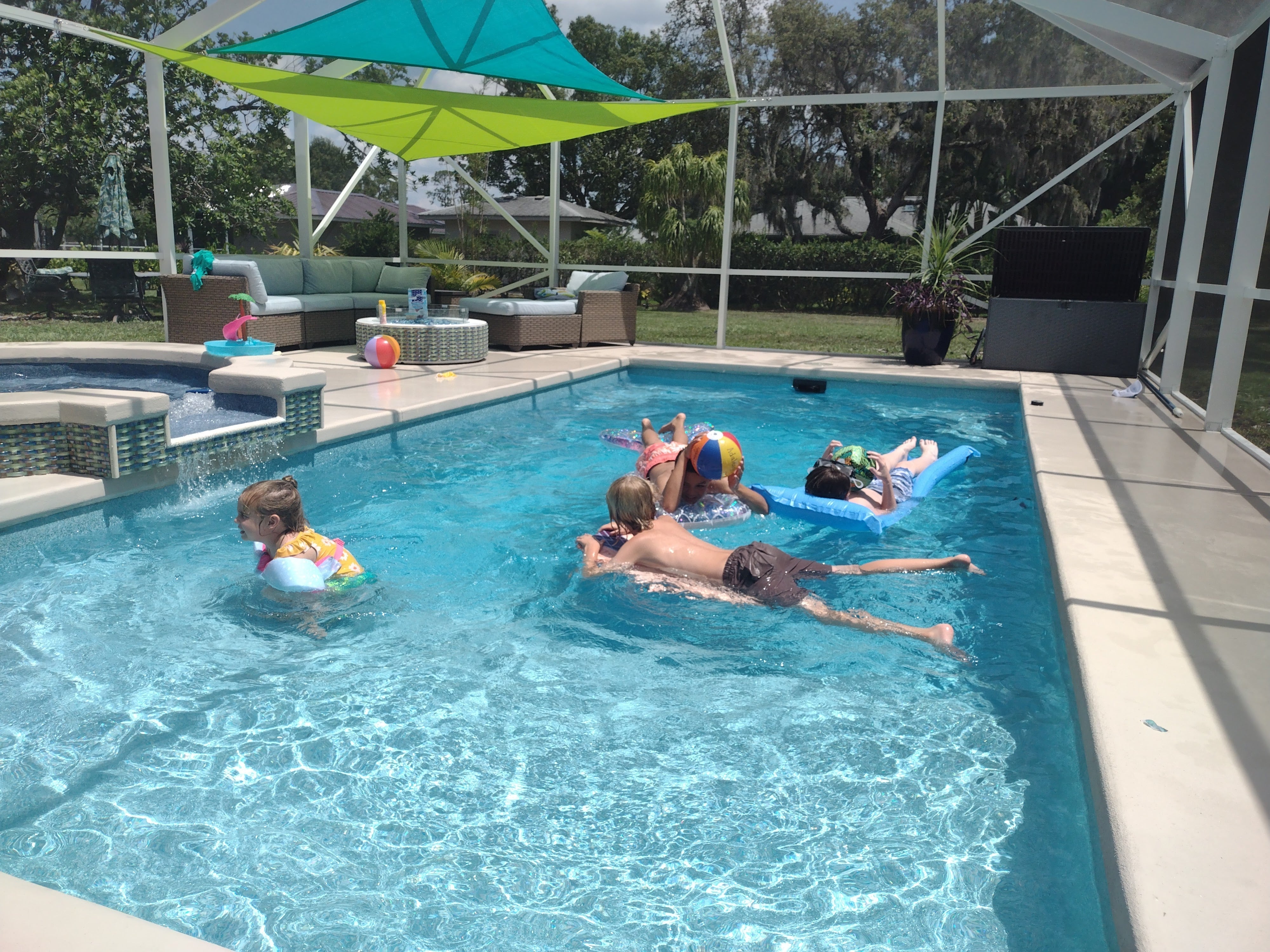

The "Overlap" Solution (Vertical Offset): This is the pro standard. Mount one sail higher and the other lower, allowing them to overlap by 2-3 feet without the fabrics touching.
Critical Tip: Maintain a vertical distance of at least 12 to 18 inches between the overlapping sails. If they touch during a windy day, the friction will wear a hole in the fabric within weeks.
2. The Physics of Water Pooling (and How to Stop It)
Water pooling is the #1 cause of shade sail failure. Water is heavy; a few gallons accumulated in the center of your sail can stretch the fabric permanently or rip your hardware out of the wall.
The "Hypar" Twist (Hyperbolic Paraboloid)
If you install a 4-point sail flat (all corners at the same height), it will sag in the middle. To prevent this, use the Hypar Twist effect: Mount two diagonal corners high, and the opposing two diagonal corners low. This shape creates tension through the center of the fabric, making it tight like a drum and forcing water to run off instantly.
Material Matters: Waterproof vs. Mesh
Your installation angle depends heavily on the fabric you choose:
- Waterproof Polyester: These act like a tarp. They must have a steep slope (minimum 20-25% gradient) to ensure runoff. If you have a 10-foot wide sail, one side needs to be 2 to 2.5 feet lower than the other.
- HDPE Mesh (Breathable): Water can pass through these, so pooling is less of a risk. However, they still require high tension to prevent sagging and wind flap.
3. Hardware & Structural Integrity
A 15-foot shade sail in a 20mph breeze generates hundreds of pounds of pull force. Do not underestimate this load.
Securing to Your House
Warning: Never screw an eye bolt directly into vinyl, aluminum siding, or fascia boards without reinforcing the structure behind it. The wind load can rip the fascia right off your rafters. Ideally, locate a wall stud or header, and use a heavy-duty diamond pad eye with 4-inch lag screws.
Using Posts and Turnbuckles
If you cannot attach to a building, use 4x4 or 6x6 wood posts (cemented 3 feet deep) or steel support poles.
Most importantly, use Turnbuckles. Ropes stretch; turnbuckles allow you to crank the tension tight during installation and retighten it a few weeks later after the fabric relaxes.
4. Positioning for the Sun Path
Don't just guess where the shade will fall. In the Northern Hemisphere (USA/Europe), the sun is always in the southern half of the sky.
- Afternoon Sun: The sun sets in the West. If you want shade for dinner time (5 PM - 7 PM), angle your sail lower on the Western side to block the harsh, low-angle sun.
- Mid-Day Sun: For noon protection, the sun is high. A flatter (but still sloped) orientation works best.
Conclusion
A well-installed shade sail combines engineering with art. By using the "twist" design for tension, ensuring a strict slope for waterproof fabrics, and using heavy-duty hardware like turnbuckles, you extend the life of your sail by years. Plan your anchor points carefully, respect the wind load, and your outdoor space will be cool and comfortable all season long.
