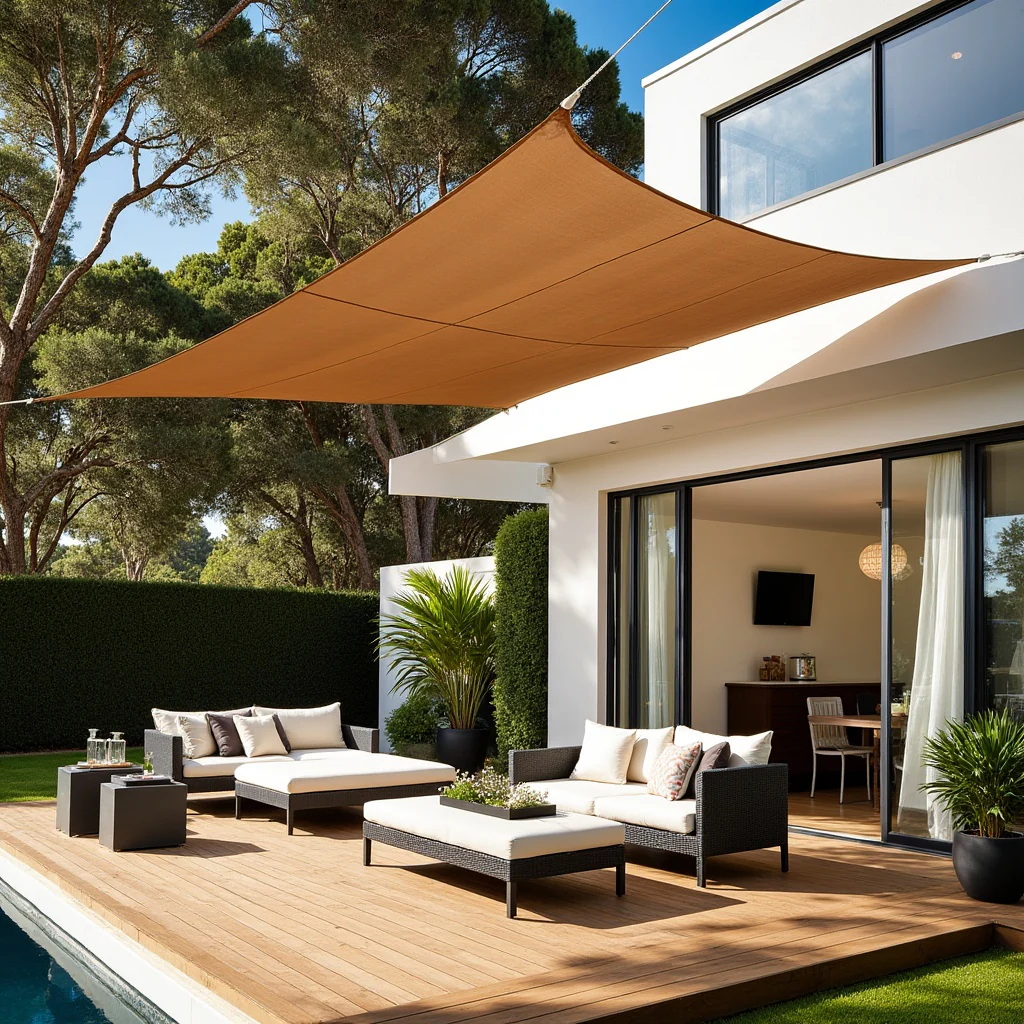

Shade sails have emerged as one of the most effective solutions for transforming a harsh, sun-baked yard into a cool, usable outdoor living space. Unlike permanent construction, these sturdy fabric canopies are cost-effective and offer architectural flair. However, they generate immense tension; a proper installation is the difference between a sleek design and a sagging safety hazard.

This guide cuts through the noise to show you exactly how to install a shade sail that is safe, tensioned correctly, and built to last.

Key Takeaways:

1. Planning: The "Twist" Rule & Legal Check

Before you buy materials, you must understand the physics of a shade sail. A flat sail will hold water (ponding), sag, and eventually fail. You must design with a Hyperbolic Parabola (Hypar) twist.

The Rule: Do not mount all corners at the same height. Alternate high and low attachment points. For a square sail, two diagonal corners should be high, and the other two low. This shape sheds water effectively and keeps the fabric tight to prevent wind flap.

Before you dig:

  • Call 811 (US Only): Never dig without having underground utilities marked. It is free and essential for safety.
  • Check HOAs & Permits: Many municipalities classify posts with concrete footings as permanent structures requiring a permit.

2. Tools and Materials Checklist

You are building a tension structure, not hanging a picture frame. Use hardware rated for outdoor loads.

Equipment / Tools

  • Stud finder (for house attachment)
  • Tape measure (25ft+)
  • Post hole digger or auger
  • Shovel & Wheelbarrow (for mixing concrete)
  • Level
  • Drill with Impact Driver bits
  • Socket wrench set
  • Ladder

Materials

  • Posts: 6x6 Pressure Treated Wood (4x4s tend to bow under tension) or Schedule 40 Steel Pipe.
  • Hardware Kit: Stainless steel (Marine grade 316 recommended). Includes Turnbuckles, Pad Eyes, and Snap Hooks.
  • Concrete: High-strength Quikrete or similar.
  • Gravel: For drainage at the bottom of post holes.
  • Bolts: 3/8" or 1/2" Galvanized Lag Screws or Carriage Bolts.

3. Setting Posts & House Anchors

Scenario A: Attaching to a House

Warning: Do not attach shade sails solely to fascia boards or vinyl siding. Fascia is often merely decorative trim and will rip off under wind load. You must anchor into:

  • Wall Studs or Headers: Use a stud finder to locate the solid wood frame behind the siding.
  • Rim Joists: The solid perimeter board between floors or under the roofline.
  • Reinforced Fascia: If you must use fascia, you need to install "fascia brackets" that connect the fascia board to the rafter tails behind it for structural support.

Scenario B: Installing Posts

Posts act as the anchors for your sail. Because the sail pulls inward, posts must be strong enough to resist bending.

  1. Depth: As a general rule, 1/3 of the post length should be underground. In loose soil, go deeper (up to 4 feet).
  2. The Lean: Set your posts at a slight angle (approx. 5-10 degrees) leaning away from the center of the sail. This helps counteract the tension.
  3. Footings: Dig a bell-shaped hole (wider at the bottom). Add 4 inches of gravel for drainage, insert the post, and fill with concrete. Agitate the concrete to remove air bubbles.
  4. Cure Time: Wait at least 48 hours for concrete to cure before applying any tension.

Diagram showing post hole depth and angle

4. Step-by-Step Installation

Step 1: Measure Spacing

Lay your shade sail out on the ground in the space. Your anchor points (posts/wall) should be 12 to 18 inches further out than the corner of the sail. You need this gap to fit the turnbuckles and allow for fabric stretching over time.

Step 2: Mount the Hardware

Install your Pad Eyes (wall plates) or Eye Bolts (posts) at your predetermined heights. Remember the "Twist" rule: maintain significant height differences between corners for water runoff.

Step 3: Connect the Sail

Attach the sail to the anchors. Use Turnbuckles on at least 2 corners (preferably all 4 for maximum adjustability). Use D-shackles or Carabiners for the remaining corners if needed. The turnbuckles should be fully extended (loose) when you start.

Step 4: Apply Tension

Tighten the turnbuckles incrementally. Move from corner to corner, tightening a little at a time to ensure even pull.
How tight? The sail should be drum-tight. There should be no wrinkles. A loose sail wears out faster because it flaps in the wind.

Tensioning a shade sail correctly

5. How much do shade sails cost to install?

Costs vary significantly based on whether you DIY or hire a pro.

  • DIY Installation: $200 - $600.
    Main costs: Posts ($50-$100 each), Concrete ($50), Hardware ($50-$100), and the Sail itself ($50-$200).
  • Professional Installation: $1,500 - $3,500+.
    Contractors will use steel posts, engineer the footings for wind load, and use custom-sized commercial fabric.

6. Related Q&A

1. Can I attach a shade sail to a deck?

Yes, but you cannot simply screw into the deck floorboards. You must bolt the post through the deck floor and into the joist framing underneath. Blocking (adding extra wood between joists) is often required to stop the post from wobbling.

2. How much wind can a shade sail take?

Standard residential sails are rated for 20-30 mph winds. High-end commercial sails can handle 50+ mph. Advice: If a storm or hurricane is forecast, take the sail down. It only takes 5 minutes and saves your investment.

3. Why does my shade sail sag?

Sagging is caused by insufficient tension or lack of height variation. If your turnbuckles are fully tightened and it still sags, your anchor points are too close together. You may need to add a wire rope extension or move the anchor point further out.

4. Do shade sails block rain?

Most standard shade sails are "knitted" HDPE fabric, which is breathable. They block 90-95% of UV rays and shed most water if pitched correctly, but they will mist through in heavy downpours. "Waterproof" sails exist (made of PVC or coated canvas), but they require much stronger poles because they catch wind like a solid wall.
