It creates a sinking feeling in your stomach. You look out at your beautiful backyard patio after a summer rainstorm, and instead of a sleek, taut canopy, you see a giant, sagging "belly" full of water in the middle of your sun shade sail.

Water pooling is the number one enemy of shade sails. It isn't just an eyesore; it is a structural hazard. A single gallon of water weighs about 8.3 pounds. A large pool can easily weigh 50 to 100 pounds, stretching your fabric beyond its elastic limit and stressing your mounting points to the breaking point.

Many homeowners think the solution is just to "pull it tighter." But the real secret isn't muscle; it's geometry. To stop water from pooling, you need to stop installing your sails flat and start embracing the architectural marvel known as the "Hypar" Twist.

KEY TAKEAWAYS

1. Why "Flat" Installations Are Doomed

The most common mistake DIYers make in the US is treating a sun shade sail like a rigid roof. They install four posts at the exact same height (say, 8 feet) and stretch the fabric between them.

The Physics of the Sag:
Even the highest quality HDPE fabric has weight. Gravity naturally pulls the center down. When you install a sail flat, there is no vertical tension to counteract gravity in the middle of the fabric.
When it rains, water seeks the lowest point. On a flat sail, the lowest point is the center. As water accumulates, it creates a depression. This depression catches more water, which creates a deeper depression. It is a vicious cycle that ends with your sail permanently stretched out of shape or your hardware ripping out of the wall.

Flat shade sail with large water pool

2. Enter the Solution: The Hypar Twist

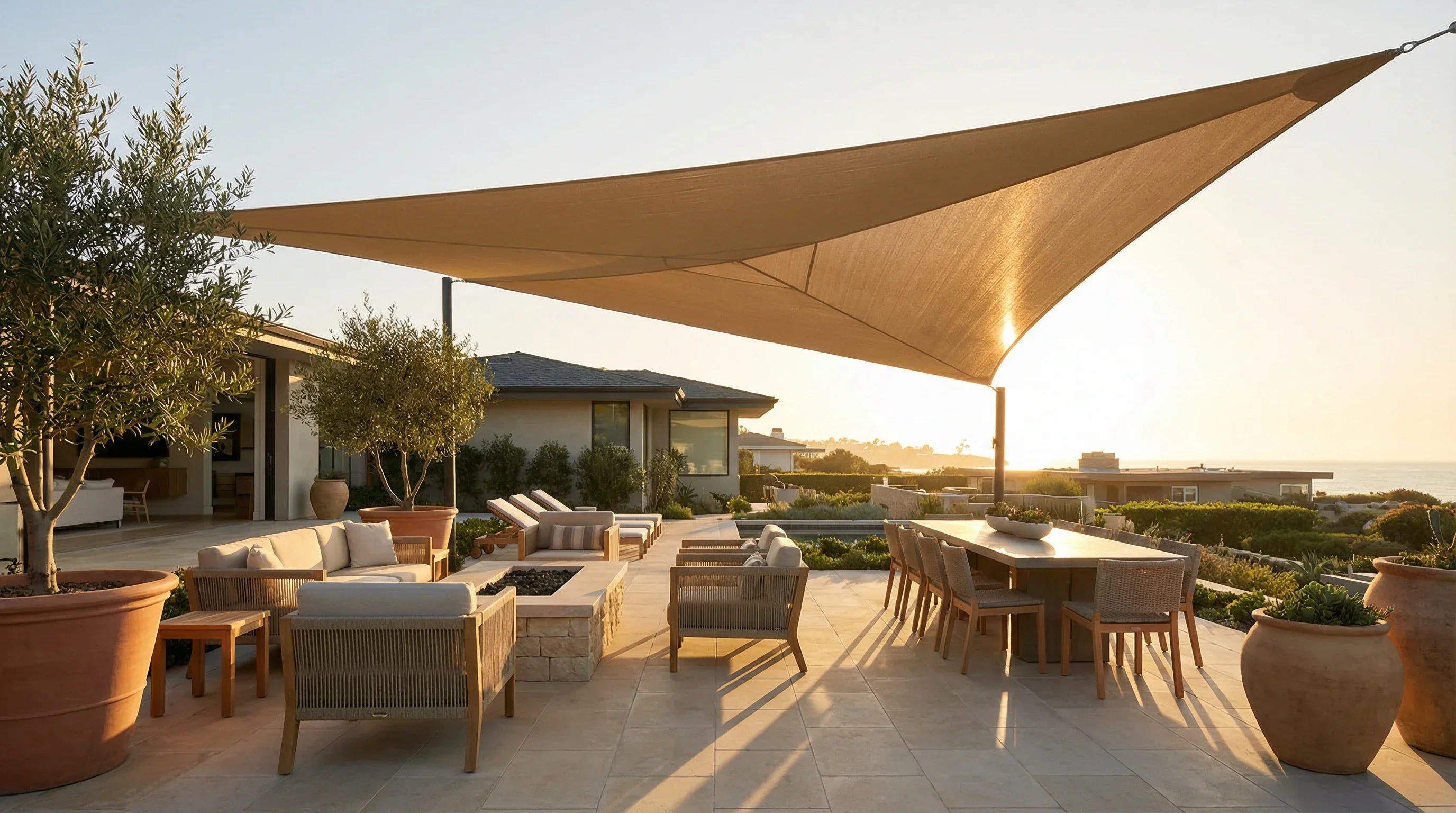

The solution is to change the shape of the sail from a 2D plane to a 3D form. In architecture, this is called a Hyperbolic Paraboloid, or "Hypar" for short. It looks like a Pringles chip or a saddle.

How to Achieve It:
You don't need a degree in engineering. You simply need to alternate your mounting heights.

Modern shade sail with hypar twist shape
  • Corner A: High (e.g., 10 feet)
  • Corner B (Next to A): Low (e.g., 7 feet)
  • Corner C (Diagonal to A): Low (e.g., 7 feet)
  • Corner D (Diagonal to B): High (e.g., 10 feet)

Why It Works:
When you twist the sail this way, you are pulling the fabric in two different directions simultaneously. The "High" corners pull the fabric up, and the "Low" corners pull the fabric down.
This opposing force creates a tight ridge through the center of the sail. The fabric becomes drum-tight, and—crucially—there is no flat spot for water to sit. Rain hits the sail and immediately runs off the lower corners.

3. The "20% Rule" for Height Difference

How much of a twist do you actually need? A few inches won't cut it. To effectively prevent pooling on a waterproof or tightly woven sail, you need significant slope.

The Golden Ratio:
At KGORGE, we recommend a height difference of roughly 20% to 30% of the sail's length.

||product||
  • Example: If your shade sail is 20 feet long.
  • Calculation: 20 feet x 0.20 (20%) = 4 feet.
  • The Setup: Your high corners should be 4 feet higher than your low corners.

This might sound dramatic, but visually, it is stunning. That steep angle gives your patio the "professional architectural" look you see in luxury hotels and resorts, rather than the "camping tarp" look of a flat installation.

Patio with dramatic steep angle shade sail

4. Breathable vs. Waterproof: The Slope Matters

While the Hypar shape is beautiful for all sails, it is mandatory for waterproof sails.

Breathable HDPE Sails:
These sails (like the ones in our Premium Collection) allow air and some fine mist to pass through. While they drain better naturally, they can still hold water in a heavy downpour if installed flat. A Hypar twist ensures they stay clean and dry.

Waterproof Sails:
These are essentially solid sheets. If you install a waterproof sail without a significant slope (at least 20 degrees or a strong Hypar twist), you are building a water tank, not a shade structure. For waterproof sails, always err on the side of more height difference.

||product||

5. Hardware: The Muscles Behind the Twist

You cannot achieve a Hypar twist using rope or bungee cords. The tension required to pull the center tight against gravity is significant—often hundreds of pounds of force.

The Essential Tool: Turnbuckles
You must use heavy-duty Stainless Steel Turnbuckles.

Heavy-duty stainless steel turnbuckles for sail
  1. Installation: Attach the turnbuckles to your high and low points fully extended (loose).
  2. Tensioning: Crank them down gradually. As they shorten, they pull the corners apart.
  3. The Result: This mechanical advantage allows you to pull the "Hypar" shape into existence. Without turnbuckles, your twist will be loose, and the fabric will flap and eventually hold water.

6. Troubleshooting: "I Already Installed My Posts!"

What if you already cemented four posts into the ground at the exact same height? Don't worry; you don't need to dig them up. You can still create a Hypar twist with hardware adjustments.

The Cable Extension Method:

  1. Keep two corners tight: Attach two diagonal corners directly to the posts using standard turnbuckles. (These will be your "High" points effectively, relative to the slack).
  2. Drop two corners: For the other two corners, use a length of stainless steel chain or wire rope to extend the reach. Mount the attachment point lower down on the post if possible.
  3. Alternative: If you can't move the attachment point on the post, you simply have to accept a flat installation but add a "shedding point." You can use a pole to push the center of the sail up from underneath (creating a tent shape) or pull the center down with a rope (creating a funnel), though the Hypar twist is far more elegant.

Conclusion: Function Meets Form

The "Hypar" twist is the perfect marriage of form and function. By twisting your shade sail, you solve the biggest headache of outdoor maintenance—water pooling—while simultaneously upgrading the aesthetic of your backyard to a modern, dynamic design.

Don't let the rain ruin your investment. Check your angles, grab your turnbuckles, and give your shade sail the twist it needs to survive the storm.
