Stop! Read This Before You Buy a Sun Shade Sail
Installing a sun shade sail transforms your patio, but it isn't as simple as hanging a towel. A shade sail is a tensioned architectural structure. To avoid sagging fabric, pulled-out siding, or HOA fines, you need to prepare the right way.
Here are the 5 critical factors to check before you order .
1. Track the Sun, Not Just the Shade
The sun is never stationary. A sail installed for noon coverage might leave you blinded by the 5:00 PM sunset.
- Don't guess: Use a "Sun Path" app on your phone to visualize exactly where the sun will be during your peak usage hours (e.g., BBQ time or morning coffee).
- Tip: Angling the sail vertically can block the harsh late-afternoon sun better than a flat installation.
2. The "Hardware Gap" (Crucial for Sizing)
This is the #1 mistake buyers make. The size of the sail is NOT the size of the space you need.
You must leave a gap between the corner of the sail and your anchor point for the hardware (turnbuckles and carabiners).
- The Rule: Deduct at least 0.5 to 1 foot from each corner of your available space to determine the right sail size.
- If your posts are 12 feet apart, you generally need a 10 or 11-foot sail, not a 12-foot one. You need room to tighten it!
3. Anchor Points: Strength Over Convenience
Shade sails generate massive tension, especially during wind gusts.
- Houses: Do not mount simply to vinyl or aluminum siding. You must locate a wall stud or a structural header. Mounting to fascia boards (the board behind your gutter) is risky without reinforcement.
- Trees: Only use mature hardwoods. The tree needs a diameter of at least 10 inches.
- Posts: If installing posts, wood usually needs to be 6x6 (not 4x4) or steel to prevent leaning over time.
4. Waterproof vs. Permeable: The Slope Rule

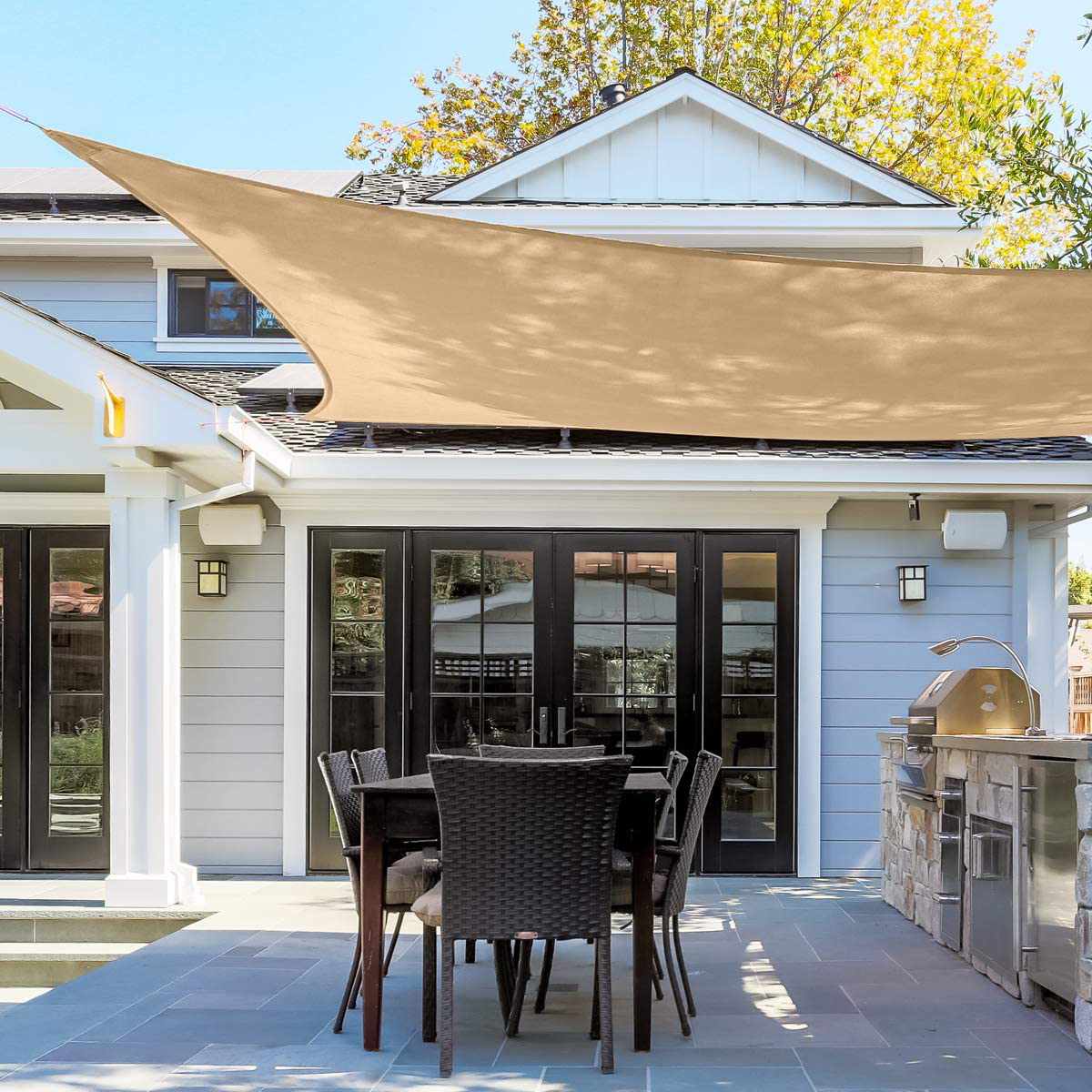

If you are choosing a waterproof (like the one pictured above), you cannot install it flat.
Waterproof sails act like buckets if they aren't angled. You must install the sail with a slope of at least 20-25 degrees to allow rainwater to run off immediately. If you don't, water will pool in the center, stretching the fabric and potentially damaging your property.
5. Check Your HOA and Permits
Before drilling holes, check with your Homeowners Association (HOA) or local municipality.
- Visibility: Some HOAs restrict structures that are visible from the street or protrude above a fence line.
- Permits: Large posts or footings sometimes require a digging permit to ensure you don't hit utility lines.
Standard vs. Custom: What Do You Need?
Standard Sizes: Perfect for straightforward patios with flexible mounting points. They are cost-effective and ship quickly.
Custom Sizes: If you have a unique space, odd angles, or need to maximize coverage between existing non-movable posts, custom is the only way to get a taut, professional look.
Not sure if a standard triangle or rectangle fits your space? Send a photo and measurements of your area to service@kgorge.com. We’ll help you calculate the hardware gap and choose the perfect for your home.
