Mastering the Install: How to Hang a Triangle Shade Sail Properly

Triangle shade sails are one of the most effective ways to add style and temperature control to your patio. However, unlike a standard umbrella, a shade sail relies on tension and physics to stay up. If you just tie it to three points, it will sag, collect water, and potentially damage your home.

This guide cuts through the fluff and teaches you the professional way to install a sun shade sail so it creates a cooling oasis rather than a maintenance headache.

The Two Golden Rules of Installation

Before you drill a single hole, you need to understand the two concepts that stop a sail from sagging.

1. The Hypar Twist (Height Variation)
Never install a triangle sail flat (where all three corners are at the same height). It will flap violently in the wind. You must mount at least one corner significantly lower or higher than the others. This creates a "twist" in the fabric, which tightens the center and prevents flapping.

2. The 20% Slope for Rain
If your sail is water-resistant or waterproof, you must create a slope for water runoff. A flat sail becomes a water bag that can weigh hundreds of pounds and rip your hardware out. Aim for a 15-20% angle drop (about 2 feet of drop for every 10 feet of length).

Proper shade sail tensioning diagram

Preparation: What You Need

Don't rely on rope alone. Rope stretches over time, causing the sail to sag. Use proper stainless steel hardware.

  • The Sail: A high-quality Triangle shade sail.
  • Mounting Points: Heavy-duty Pad Eyes (for walls) or Eye Bolts (for posts).
  • Tensioning: Turnbuckles (essential for getting the fabric tight).
  • Connecting: D-Shackles or Snap Hooks (Carabiners). Avoid S-Hooks as they can slip off in high winds.
  • Tools: Drill, suitable masonry or wood drill bits, tape measure, ladder, and a pencil.

Step-by-Step Installation Guide

Step 1: Plan Your Layout

Lay your shade sail out on the ground where you want it to hang.
Crucial Step: You must leave space between the corner of the sail and the mounting point for your hardware. Usually, this is about 10% of the sail's length (e.g., if the sail is 10 feet, leave 1 foot of space at each corner). This space is for the turnbuckle to expand and tighten.

Step 2: Determine Mounting Points

You will likely attach to a combination of:

  • Your House: Locate a wall stud, fascia board, or header. Do not mount only to vinyl siding or plywood sheathing; the tension will rip it off. You must hit solid wood or concrete.
  • Posts: If you don't have three walls, you will need to install a post. A 6x6 pressure-treated wood post or a steel column is recommended. Posts should be buried 1/3 of their length in concrete for stability.

Step 3: Install the Anchors

Mark your spots with a pencil. Remember the Slope Rule—ensure one corner is mounted significantly lower than the others to allow rain to run off immediately. Drill your pilot holes and screw in your Pad Eyes or Eye Bolts.

Step 4: Connect the Hardware

Attach your turnbuckles to two of the anchor points. Make sure the turnbuckles are fully "open" (extended) so you have room to tighten them later. Use D-shackles or Carabiners to connect the sail corners to the turnbuckles.

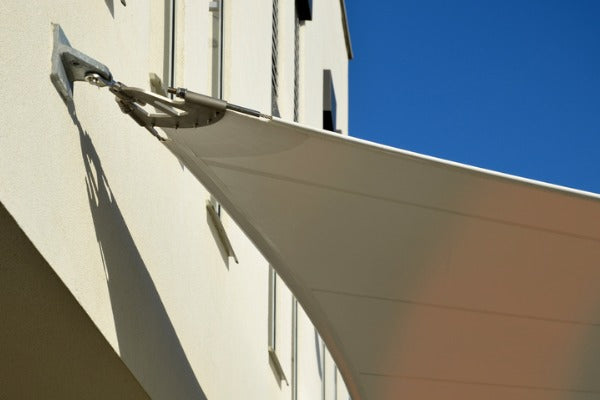

Shade sail hardware and turnbuckle close up

Step 5: Tensioning (The Most Important Part)

Once all corners are connected, begin tightening the turnbuckles.
How tight is tight enough? The fabric should be drum-tight. There should be no wrinkles. If the fabric has deep wrinkles running toward the center, it is too loose. High tension prevents wind damage and ensures the aesthetic "curved edge" look.

Maintenance and Care

Shade sails are durable, but they aren't invincible.

  • High Winds: If a storm with winds over 35-40mph is predicted, take the sail down. It takes 5 minutes and will save you hundreds of dollars.
  • Re-tensioning: New sails often stretch slightly in the first few weeks. You may need to tighten the turnbuckles again after the first month.
