Clearance Standard Stainless Steel Shade Sail Support Pole For Small Sail

Description

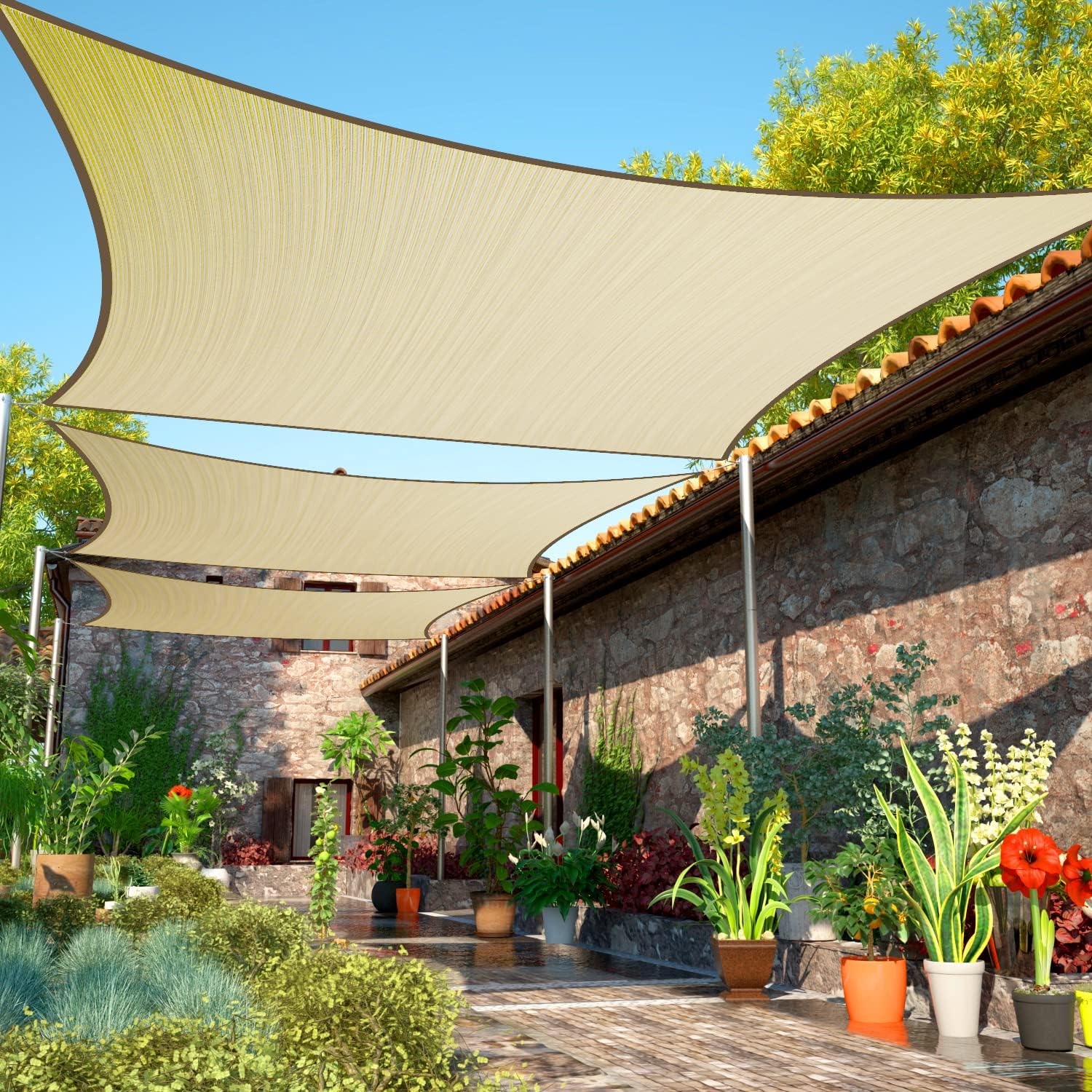

Enhance the ambiance of your patio without ducking! Easy-to-install waterproof and rust-proof stainless-steel support pole for outdoor sun shade sails, tents, tarps and canopies.

Available height: 8 ft / 96 inches; 12 ft / 144 inches

 Features

1. sturdy and durable

304 Stainless Steel material to provide extra support to your shade sails, tents, tarps and canopies.

2. Easy & intuitive mounting system

Comes with reinforced bottom to secure to deck and ground

3. Extra strength

Includes twist together pole attachment and premium mounting system

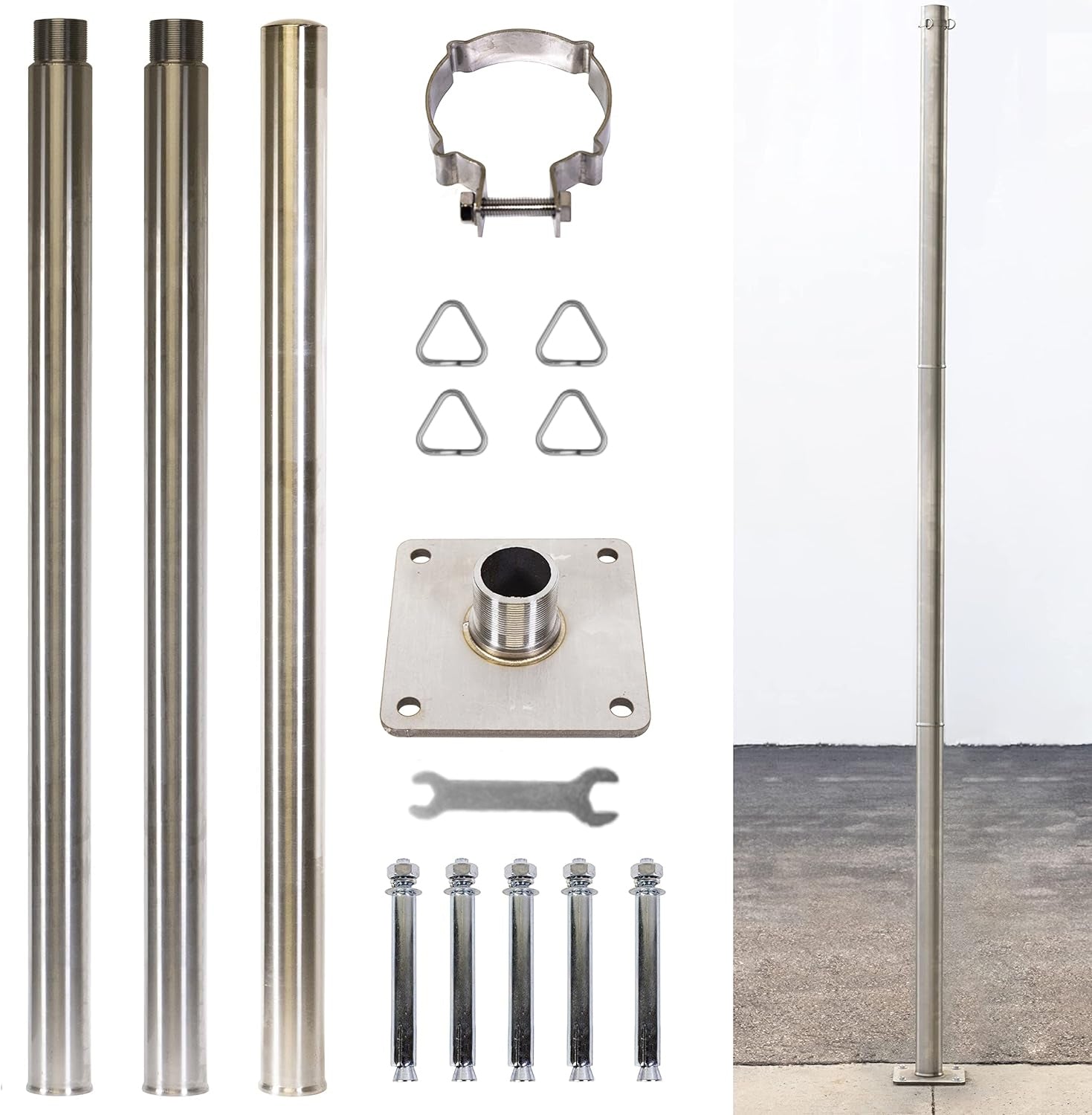

 What's included

1.Base plate x 1

2.Drilling bolts and nuts x 5

3. Pole segments x 3

4.Triangular clamp system x 1

  • Tightening bolt and nut x 1

  • Triangular rings x 4

Shade Sail Support Rod Installation Manual

Step 1：

Please refer to the section with the corresponding pole size:

Identify all the included components of the supporting rod:

• One base plate (including four expansion nails)

• One adjustable clamp (including four triangular rings, tightening bolt & nut and wrench)

• Three 32 inches pole segments. Two identical and one capped at one end

96 Inches Versio

Identify all the included components of the supporting rod:

• One base plate (including four expansion nails)

• One adjustable clamp (including four triangular rings, tightening bolt & nut and wrench)

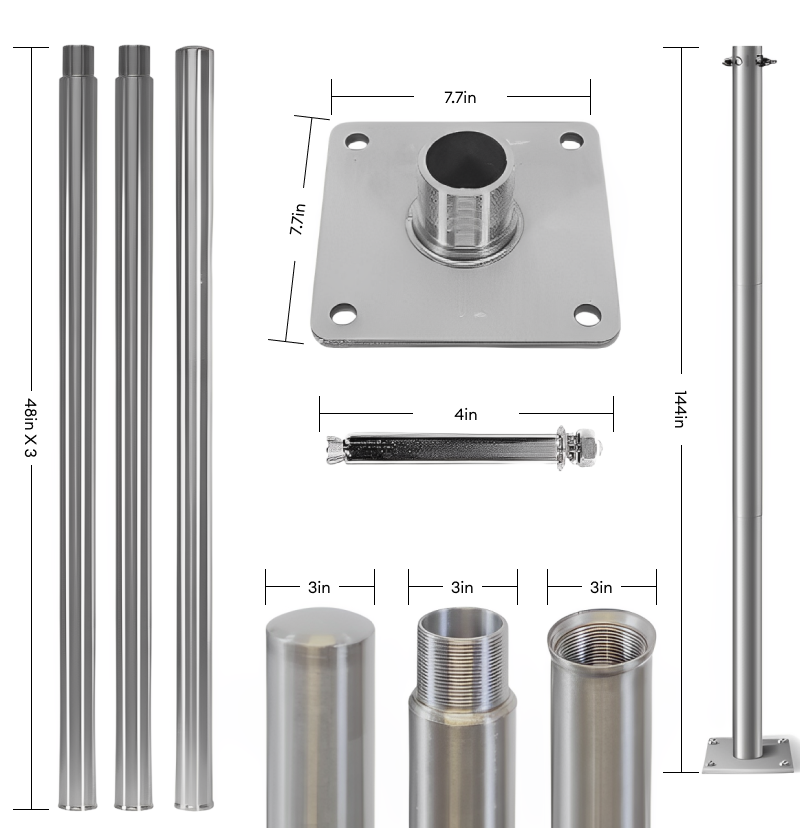

• Three 48 inches pole segments. Two identical and one capped at one end

144 Inches Versio

Step 2

The base must be drilled in to be secured. Mark four drilling points of the base and drill the holes using 12 mm drill bit, suitable for any surfaces that can secure the nails including wooden foundations  cement, and metal. Soft soil is not suitable.

  • Insert the expansion brackets and screw on nails into the surface you drilled into.

  • Screw on one of the connecting pole segments onto the base.

Step 3

To attach the adjustable clamp onto the desired height. Put in the four triangular ring that goes into the clamp. Tighten the bolt and nut with the wrench.

Step 4

Then screw to connect the other identical pole segments together before placing the top pole segment on lastly (with a capped top).
