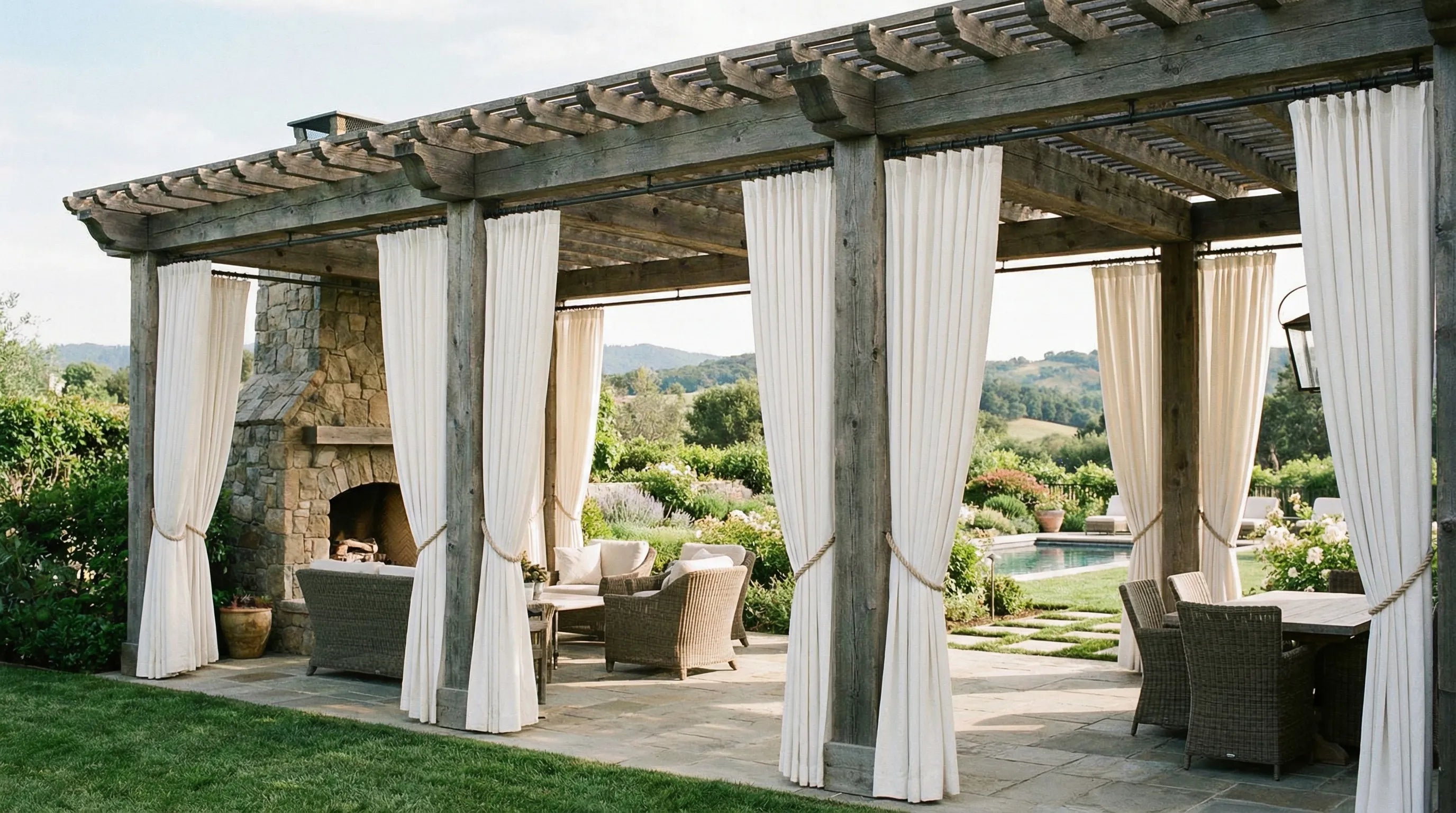

How to Hang Outdoor Curtains Across Wide Spans (20ft+) Without Sagging

While standard curtain hardware works beautifully for typical doorways, spanning a 20-foot patio or pergola requires a specialized approach to maintain a polished look. Standard telescopic poles may flex over longer distances, affecting the clean lines essential to a refined aesthetic.

Spanning twenty feet invites you to shift your mindset from simple decoration to architectural integration. This guide moves beyond theory into the specific techniques required to create a system that is both beautiful and functional.

Preserving a Clean Line: Understanding Tension and Support

Understanding the physics behind wide spans ensures you choose a solution that endures. It is not merely a matter of material strength; it is about effectively managing gravity.

When you hang a curtain wire or rod between two points, gravity exerts a downward force. To keep that line perfectly straight, significant tension is required. On a 20-foot span, the physics of vector forces dictates that as the line becomes straighter, the tension needed to maintain that alignment increases.

To keep a weighted outdoor curtain cable perfectly flat across 20 feet without center support, the system requires substantial tension. Many residential sidings and wood posts are not designed to withstand this degree of horizontal force; doing so could compromise stability or loosen anchors. Therefore, for any span over 12 feet, we recommend introducing center supports (Method 1) or utilizing industrial-grade tensioning hardware anchored into structural framing (Method 2).

The "Stack Back" Consideration (Maximizing Your View)

Before you measure 20 feet and purchase hardware, consider the "Stack Back." When you open heavy outdoor curtains, they gather rather than disappear. A 20-foot curtain will generally compress into a 3-to-4-foot bundle on each side.

• The Challenge: Installing a rod that matches the opening width exactly means the open curtains may obstruct approximately 6 feet of your view.
• The Recommendation: Use the Width + 20% rule. If space permits, extend your rod or wire 2 to 3 feet past the opening on both sides. This allows the curtains to rest against the wall, fully revealing the window or view.

The Critical Decision: Grommets vs. Rings

Before selecting hardware, examine the top of your curtains. This detail guides your entire installation strategy.

Many outdoor curtains feature grommets (metal rings integrated into the fabric). While popular, grommets present a challenge for wide spans because they slide over the rod. If your 20-foot span requires a center support bracket to maintain alignment, a grommet panel cannot pass that bracket, resulting in separate panels being confined to specific sections.

To achieve a curtain that glides freely across the entire 20-foot run, we recommend using curtain rings with bypass brackets.

A bypass bracket is designed with a "C" shape or under-hook, leaving the top of the rod open. You then attach "C-rings" to your curtains. These rings feature a strategic gap that allows them to glide seamlessly over the bracket without interruption.

Method 1: The "Industrial" Aesthetic (Galvanized Pipe & Bypass Brackets)

This method utilizes rigid plumbing pipe or EMT conduit to create a robust, zero-sag system. It provides substantial durability and a sophisticated, modern-industrial look.

Best For: Wall-mounted installations, heavy wood beams, and masonry exteriors.

The Hardware Setup: The Internal Splice Technique

Since finding a continuous 20-foot pipe can be difficult, joining two 10-foot sections is the standard approach.

The Consideration: Standard set-screw couplings often have protruding screws that can catch curtain rings.

The Professional Solution: Use the Internal Splice Method.

1. Purchase 3/4" or 1" EMT Conduit or Galvanized Pipe.
2. Acquire a wooden dowel or a smaller diameter metal pipe that fits snugly inside your main pipes.
3. Slide the dowel halfway into one pipe, then slide the second pipe over the remaining half.
4. Push the pipes tightly together.
5. Wrap the seam with one layer of heavy-duty clear packing tape or aluminum foil tape. This creates a perfectly smooth transition for rings to glide over.

The Bypass Solution

Install a support bracket every 5 to 7 feet (0', 7', 14', 20'). Ensure you select Bypass Brackets (often called "C-Style" brackets) specifically sized for your pipe's outer diameter to allow for smooth movement.

Installation Note: Preparation

Galvanized pipe often arrives with a protective industrial coating. To protect your fabrics, clean the pipe thoroughly with mineral spirits or a degreaser until a cloth remains clean, then finish with clear car wax for a smooth glide.

Method 2: The "Invisible" Look (Stainless Steel Cable)

For those who prefer a minimalist aesthetic, a wire tension system is an elegant choice. This approach differs significantly from standard lightweight wire kits.

Best For: Spanning between posts, pergola columns, or areas where preserving the view is paramount.

The Hardware Standards

For a 20-foot span carrying substantial outdoor fabric, we recommend 1/8-inch or 3/16-inch stainless steel aircraft cable rather than coated clothesline wire.

Securing the Cable (Essential Steps)

Properly terminating steel cable requires specific hardware to ensure longevity:

1. Thimble: A metal teardrop loop. Wrapping the wire around this prevents friction and wear.
2. Wire Rope Clips (Clamps): U-shaped bolts that secure the wire loop. Use two clips per end for optimal security. Tip: Tighten the nuts on the "live" (long) end of the wire rather than the short cut end.

Anchoring to Hollow Pergola Posts

The tension required to maintain a straight 20-foot cable is significant. When working with hollow aluminum posts, a through-bolt offers superior stability compared to a simple screw.

• The Through-Bolt: Drill completely through the post. Insert a stainless steel threaded rod with a washer and nut on the back side. This distributes the load across the entire column.

Method 3: The "Seamless" Look (Curtain Tracks)

This is often considered the commercial standard. Instead of a rod, an aluminum channel is mounted to the ceiling, with wheeled carriers rolling smoothly inside.

Best For: Soffits, covered patios, lanais, and flat ceilings.

Operational Benefits

Tracks offer exceptional ease of movement. Because the carriers are enclosed within the track, the supports are mounted on the top, remaining completely out of the way. This allows for supports every 12 inches while ensuring the curtain glides uninterrupted.

Selecting the Right Track

We recommend powder-coated aluminum architectural tracks over plastic alternatives, as UV rays can affect the longevity of plastic. For a 20-foot span, butt two 10-foot tracks together. distinct alignment ensures the wheels glide silently across the seam.

Critical Component Checklist

Use this table to ensure you have the necessary "connector" pieces for a complete installation.

Safety Considerations: Managing Wind Resistance

A 20-foot curtain catches a significant amount of air, acting similarly to a sail. Even moderate breezes can generate force.

Properly securing your curtains ensures they remain elegant and your hardware stays secure during inclement weather.

1. Weighted Hems: Open the bottom hem and insert a galvanized utility chain along the entire length to minimize billowing.
2. Floor Anchors: Install a D-ring into your patio deck. Use a carabiner to clip the bottom corner of the curtain to this anchor.
3. The Release Rule: In high-wind zones, consider using bungee cords for your tie-downs. This allows the tie-down to flex or release under extreme pressure, protecting your pergola structure.

Conclusion: Harmonizing Structure and Style

Hanging curtains across a 20-foot span is a significant architectural enhancement. While the "invisible" wire look is sophisticated, it requires robust anchor points. The industrial pipe aesthetic, while substantial, is often the most adaptable for installation. Assess your mounting surface first—whether it is a hollow post, a concrete wall, or a wood soffit—and let that guide your hardware choice. With the right planning, you will create a seamless, shade-providing feature that enhances your home for years.
